首頁 > 供應產品 > 旋風式集塵機
旋風式集塵機
點擊圖片查看原圖
產品: 瀏覽次數:512旋風式集塵機
單價: 面議
最小起訂量:
供貨總量:
發貨期限: 自買家付款之日起 3 天內發貨
有效期至: 長期有效
最后更新: 2012-02-07 08:49
  詢價
詳細信息

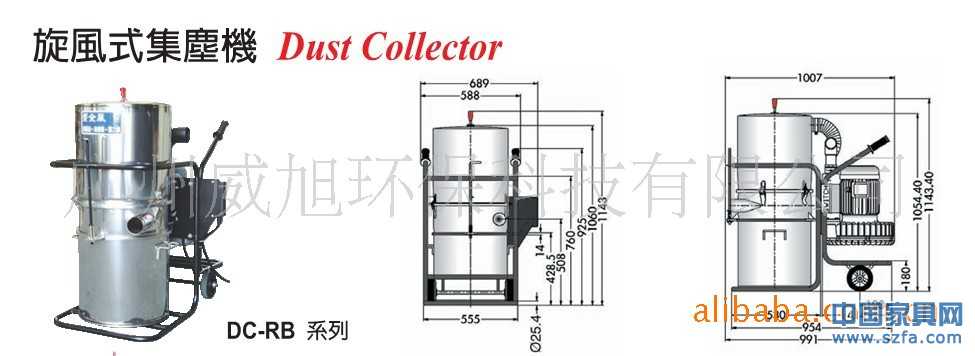

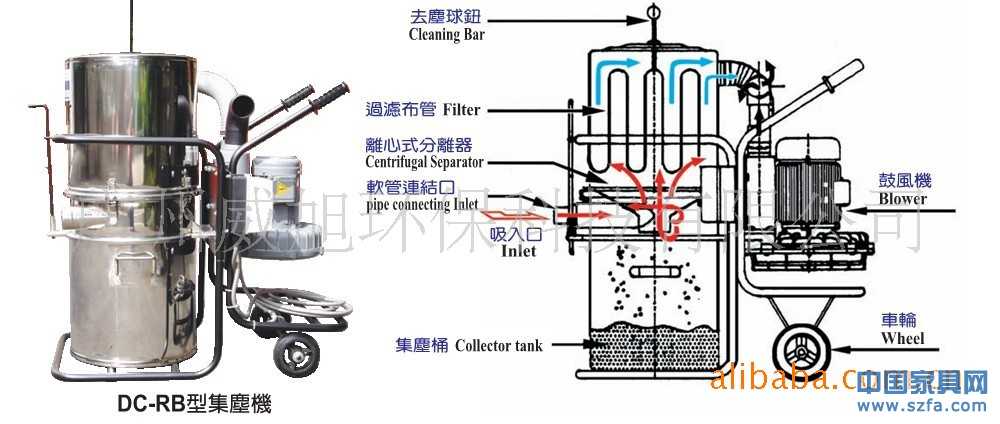

旋風式集塵機Dust Collector

特性:本集塵機為本公司最新制造,采用旋風收塵極喻袋式吸塵機之特長,吸力特強。、

用途:可靠近粉塵場所收塵,不需配管,節省經費,大幅提高方便與機動性。

     適用于噴砂、砂輪、木工、研磨、切削等,吸塵粉,棉屑,木削之用。

Functions: DC series a new design high efficiency dust collector, both cyclone & suction design were adopted.

Applications: High efficiency, movable & convenient unit, could be applied nearby dust creators, non pipe-construction required. Economically, Mobility, and Conveniently.

  It’s suit to be applied on sand-spray processing, grind processing, wood-working, sawing etc. For dust, smog collecting.





型式

Type

功率

KW/HP

最大靜壓

kpa

最大風量

m3/min

吸入口徑

Inlet

重量

Weight

補集效率

99%以上

DC-RB-750

0.75/1

13/16

2/2.4

3”

80kg

可處粒徑0.05μm (特殊濾袋)可至0.01μm

DC-RB-022

1.5/2

19/23

3.4/4.2

3”

90 kg

DC-RB-033

2.2/3

21/26

4.8/6

3”

95 kg

DC-RB-055

3.7/5

27/33

6.5/8

3”

125 kg

DC-RB-077

5.5/7

27/32

10/12

3”

145 kg

DCS-RB-750

0.75/1

13/16

2/2.4

1 1/2”

40 kg

DCS-RB-022

1.5/2

19/23

3.4/4.2

1 1/2”

50 kg

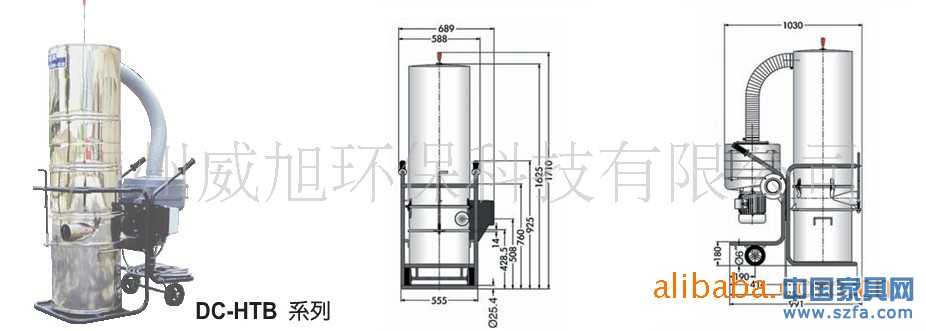

DC-HTB100-102

0.75/1

3.2/4

10/12

4”

100 kg

DC-HTB100-203

1.5/2

4.6/6.5

11/13

4”

106 kg

DC-HTB100-304

2.2/3

6.1/8.5

12/14

4”

115 kg

DC-HTB100-505

3.7/5

7.4/10.5

13/15

4”

125 kg

DC-TB100-1

0.75/1

1.3/1.8

13/15

4”

95 kg

可處粒徑0.1μm

DC-TB100-2

1.5/2

2.1/2.5

20/23

4”

100 kg

DC-TB125-3

2.2/3

2.5/3.2

25/32

6”

110 kg

DC-TB150-5

3.7/5

3.6/4.5

35/45

6”

127 kg

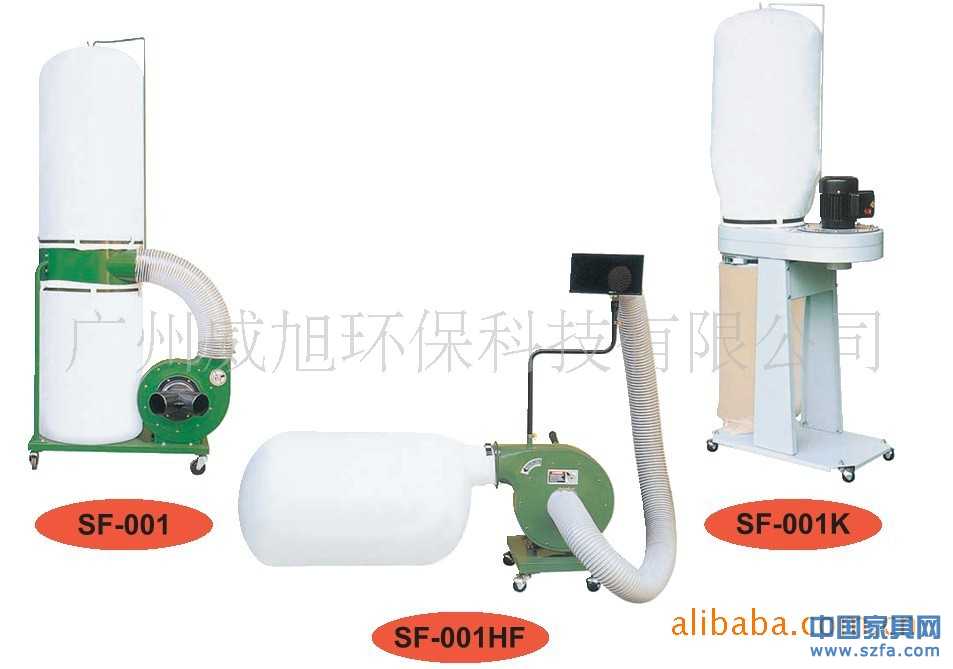

活動式(袋式)集塵機Portable Dusr Collector

用途:可靠近粉塵場所收塵,不需配管,節省經費,大幅提高方便與機動性。

     適用于噴砂,砂輪,木工,研磨,切削等,吸塵粉,棉屑,木削之用。

規格specifications

型號

Model

功率

(hp)

風速

Air speed

(m/sec)

風量

Air flow

(m3/min)

吸風口徑

inlet

集塵袋

Collector

Bag(cm)

組合尺寸

Space occupied(cm)

包裝尺寸

Packing

Sizecm

凈重

N.W.

(kg)

毛重

G.W.

(kg)

SF-001HF

3/4

40

19.5

4*1

Ф35

50*100*50

47*40*55

20

22

SF-001K

1

42

20

4*1

Ф35

75*38*185

79*43*39

36

38

SF-001

1.5

38

37

4*2

Ф51

90*50*200

87*61*58

51

53

SF-209BH

2

40

59

4*3

Ф61

97*60*280

96*74*59

112*62*8

80

87

SF-003F

3

45

88

4*4

Ф51

144*57*220

113*80*58

146*60*8

100

105

SF-003

5

45

92

4*4

Ф61

168*62*280

116*70*68

167*64*5

120

135

SF-004

7 1/2

48

141

4*6

Ф61

155*130*280

162*85*78

200

250





活動式(袋式)集塵機Portable Dusr Collector

Designed especially for small working environment suitable for coarse dust or chips.

Powerfui motor features a cast iron blower blower house with steel impeller, sealed long lasting operation.

Offer you large collecting capacity.

Sturdy steel base with four wheel for moving machine to machine, or for storing out of the way.





工業用(干/濕兩用)集塵機Industrial wet/dry vacuum cleaner

The fully new-designed separated cooling system of the best efficiency, guarantee of long-term running use.

Low-noised, sturdy and closely woven filter bag preventing from dust leakage as pollution to the environment, the surface of filter bag is special treated for dust resistance, easy to be cleaned up.

Special water-proof equipment ensures safe motor operation, anti-rust, moisture-proof and hight-weight stainless steel tank free of knock, for dry and wet use.

規格specifications

型號

Model

功率

power

(W)j

電壓

Voltage

(V)

真空壓

Vacuum

(mmAq)

風量

Air flow

(m3/min)

容量

Tank size

(liter)

材質

material

材積

Packing size

L*W*H(mm)

重量

Weight

(kg)

JS-107

1100

110,220

2300

2.6

40

Stainless

560*500*730

19

JS-121

1100

110,220

2400

2.8

47

Stainless

610*510*890

29

JS-150

2700

110,220

2700

5.6

56

Stainless

610*510*990

32
